intermediate frequency heating Elbow Hot Forming Machine

Name: intermediate frequency heating Elbow Hot Forming Machine
Brand: junxi
Price: 1 USD

intermediate frequency heating Elbow Hot Forming Machine Manufactures

Place of Origin : China

MOQ : 1 SET

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10-15 SET/ MONTH

Delivery Time : 20-25 WORK DAYS

Packaging Details : plastic wrapping & wooden box for Hand Portable Pipe Cutting And Beveling Machine

Brand Name : junxi

Certification : iso

material : Carbon steel , Stainless steel

Colorwhite : white

Type : electric

Key Selling Points : High Productivity and high speed

Application : make pipe

Use : math pipe and pipe fittings

Nammanual beveling machinee : Elbow Hot Forming Machine

Contact Now

intermediate frequency heating Elbow Hot Forming Machine

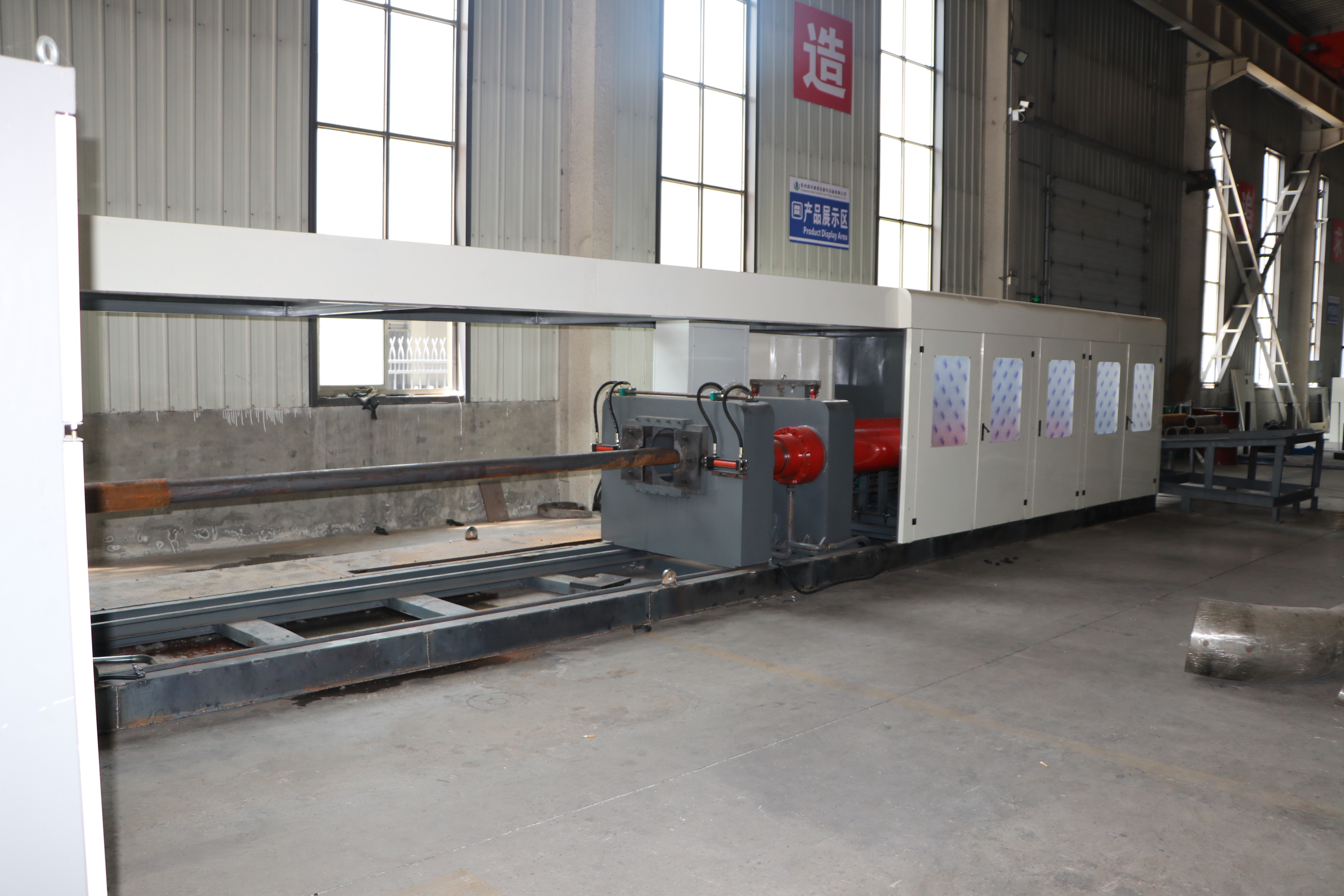

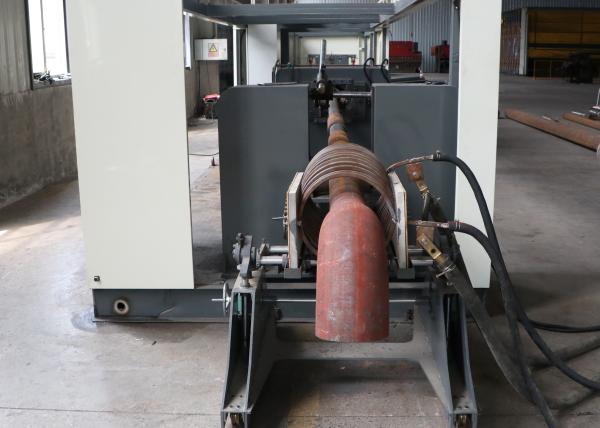

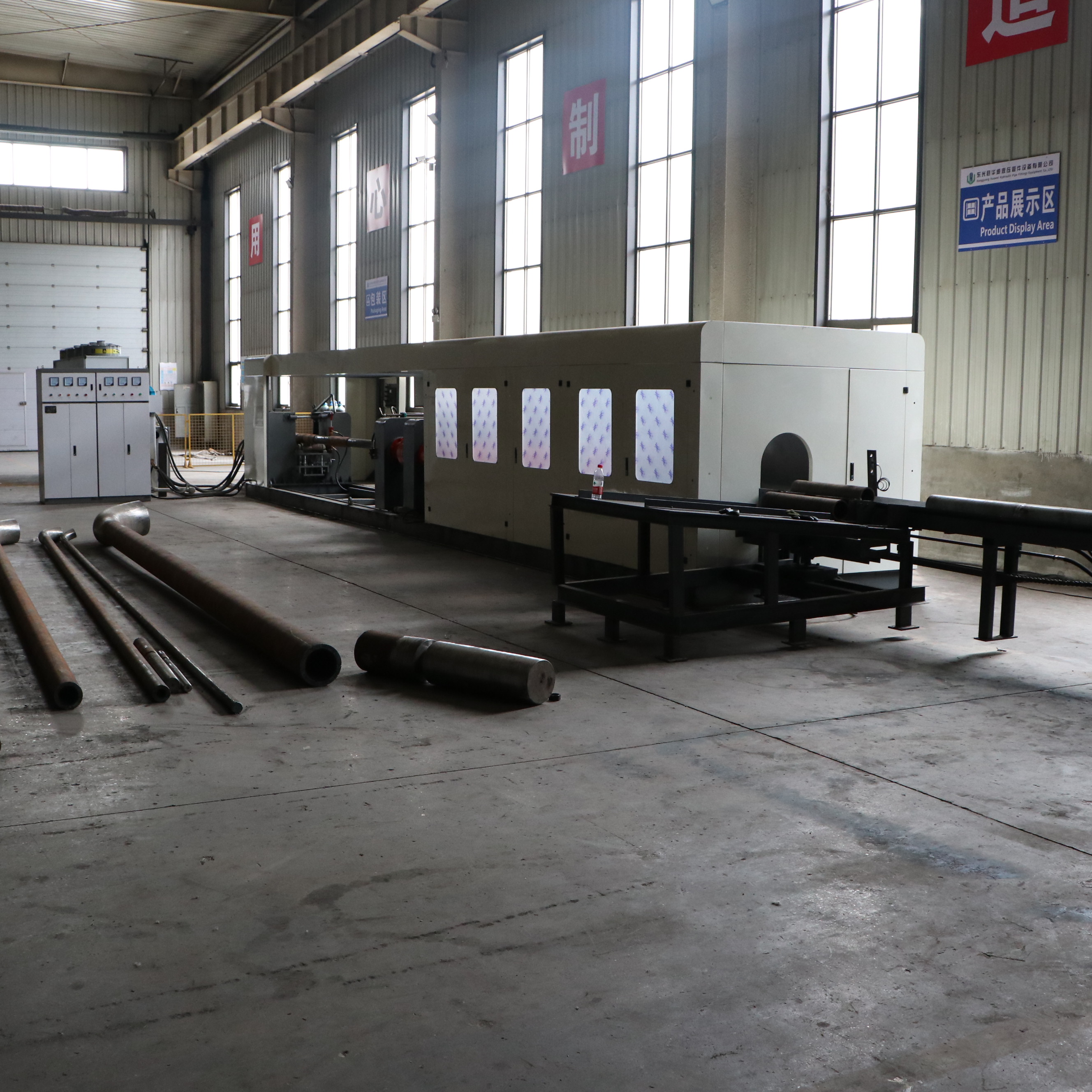

Elbow Hot Forming Machine

Elbow Hot Forming Machine mainly produces elbow pipe fittings of 1D and 1.5D.Elbow pusher mainly produces carbon steel and stainless steel elbow.The production mode of elbow pushing machine is mandrel and through the ball.The main characteristics of elbow pushing machine are simple operation, low cost and high efficiency.Elbow pusher can produce elbow diameter of 21mm-630mm, wall thickness of 3-30mm these models we produce elbow pusher can be done.Elbow push machine mainly includes: rack, table, side table, hydraulic press, electrical box and human control board and mandrel also known as horn.The structure of the elbow pusher is the integral frame structure.The overall design of elbow pusher is relatively compact and reasonable.The above is a brief introduction of elbow pusher for customers.

Mode NO: GIL114

Size range:OD17-114 Thickness:max8mm

Details of the machine:MAX Elbow size:OD114MM*8.56MM

Ram Cylinder

Piston	Ram	Cylinder	Valid Travel	Max Thrust	Qty
Φ125mm	Φ90mm	Φ152	2500mm	51.5T	2

Pump:

2grade pumper of integrated connection

1.40SCY—14-1B 1set CB—50 1set

2.Motors:

Y—7.5kw 1set Y—5.5kw 1set

3.Operation Platform 1set

medium-frequency Heating System:Mode No.:KGPS—60KW

Weight of the machine:2.5tons

Dimension: L*W*H: 5800mm*700mm*900mm

intermediate frequency heating Elbow Hot Forming Machine
